FIC—————FTTH

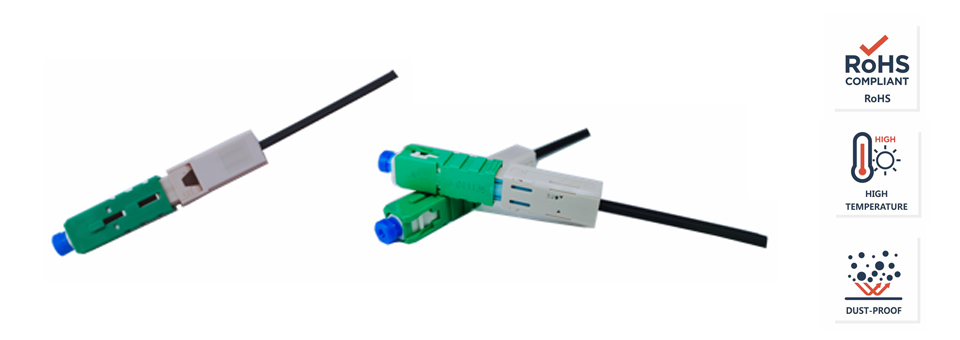

FIC-20 Field Installation Connector
  • Specification
  • Features

Model No.

FIC-20

Insertion loss

≤0.30dB   Max 0.5dB

Return loss

APC≥55dB UPC≥50dB

Tensile

△IL<0.3dB @ 40N

Durability

>500 times

Re-assembly

>5 times

Cable scope

2.0mmX3.0mm Drop Cable

Humidity

≤ 95%

Operating temperature

-25-85℃

Atmospheric Pressure

70-106Kpa



Precise cutting of fiber length

Snap-type design ensures sufficient tension

Provide the optical fiber
micro-bending tolerance.

There is no need to unload the outer casing during field assembly
