Product

CABLE—FTTH

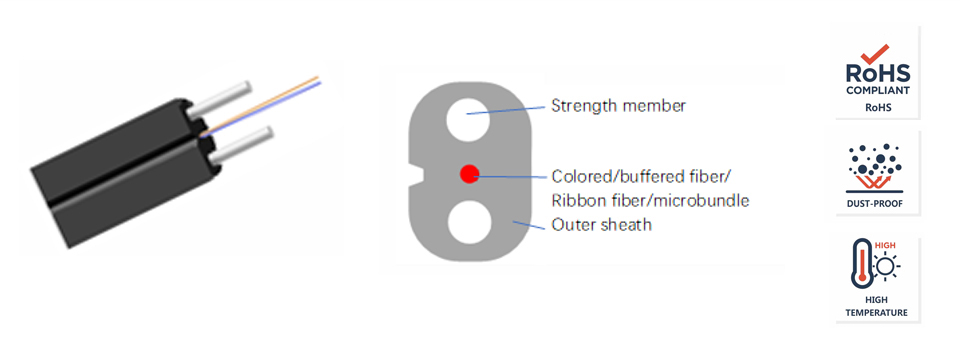

GJXH Optical Fiber Cable
  • Specification
  • Features

Model NO.





GJXH

Fiber type

9/125(G657A2)

Sheath color

White/Grey

Sheath material

LSZH

Cable dimension (mm)

2.5*1.7, 3.4*1.7, Tolerance±0.1

Operation temperature (℃)

-20~+60

Min. bending radius (mm)

15H (Static)

30H(Dynamic)

Attenuation (dB/km)

 ≦ 0.4 at 1310nm

 ≦ 0.3 at 1550nm



1   Groove design, easily
     strip and splice.
2   simplified installation
     and maintenance.
3   higher tensile strength


1  Suitable for all kinds of
    connectors
2  Can make patchcord and
    pigtail.

1  Used in indoor cabling,
    especially used for FTTH.
2  Used as access building
    cable.
