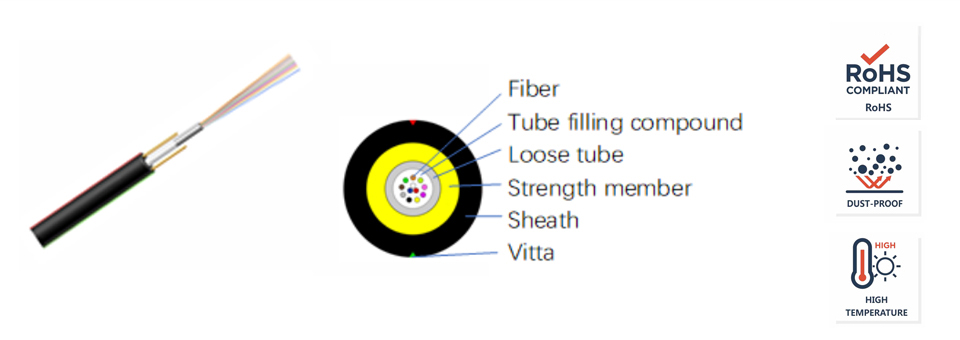

GYFXTY-Ⅰ Optical Fiber Cable
  • Specification
  • Features

Model NO.

GYFXTY-Ⅰ

Fiber type

9/125, 50/125, 62.5/125

Sheath color

Black

Sheath material

PE

Cable dimension (mm)

6.0-7.5, Tolerance±0.1

Cable weight (Kg/km)

20-30

Min. bending radius (mm)

30 (Static)

15(Dynamic)

Attenuation (dB/km)

 ≦ 0.4 at 1310nm

 ≦ 0.3 at 1550nm



1   Two parallel Fiber
     ReinforcedPlastics (FRP).
2   PE sheath protects cable
     from ultraviolet radiation.


1  Small diameter, light weight
    and easy installation.

1  Long delivery length.
2  Packed by wooden drum.
