Product

CABLE—FTTH

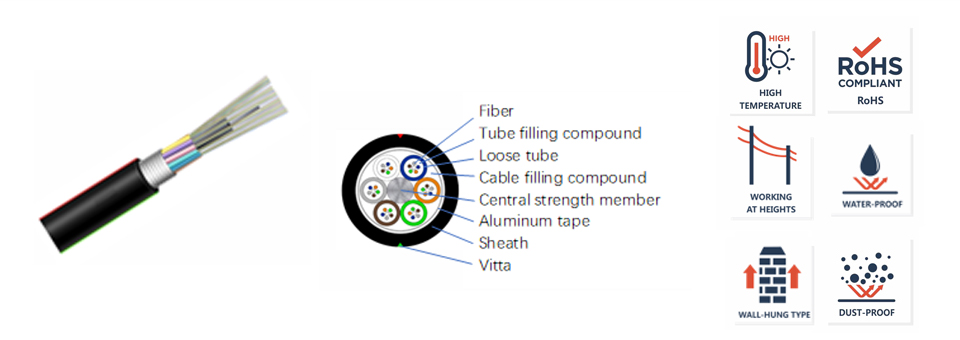

GYTA Optical Fiber Cable
  • Specification
  • Features

Model NO.





GYTA

Fiber type

G652

Sheath color

Black

Sheath material

PE

Cable dimension (mm)

9.5-13.5, Tolerance±0.1

Cable weight (Kg/km)

90-228

Min. bending radius (mm)

30 (Static)

15(Dynamic)

Attenuation (dB/km)

 ≦ 0.4 at 1310nm

 ≦ 0.3 at 1550nm



1  Single steel wire as central
    strength member
2  Specially designed
    compact structure is good
    at preventing loose tubes
    from shrinking .


1  Duct and Aerial, Direct
    Buried.
2  Small cable diameter, light
    cable weight, easily to lay

1  Steel tape armored,
    excellent anti-crush
    properties.
2  Good anti-bullet properties.
