GYTA53 Optical Fiber Cable
  • Specification
  • Features

Model NO.





GYTA53

Fiber type

G652

Sheath color

Black

Sheath material

PE

Cable dimension (mm)

12.5-18, Tolerance±0.1

Cable weight (Kg/km)

175-330

Min. bending radius (mm)

30 (Static)

15(Dynamic)

Attenuation (dB/km)

 ≦ 0.4 at 1310nm

 ≦ 0.3 at 1550nm

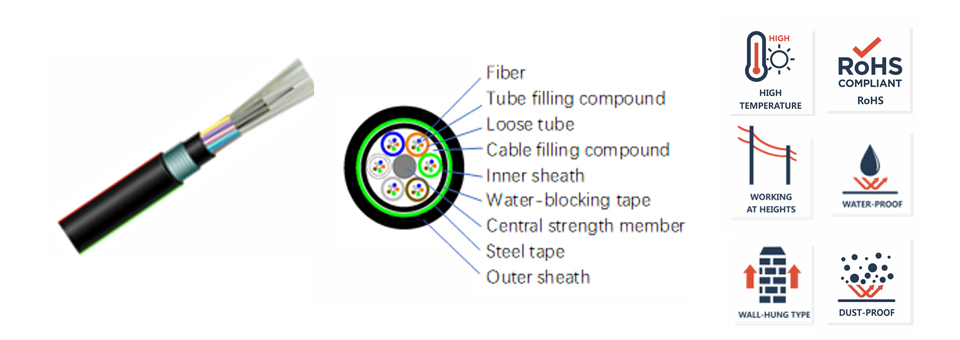

1  Steel wire used as the
    central strength member.
2  Water-blocking tape


1  Duct and Aerial, Direct
    Buried.
2  Small cable diameter, light
    cable weight, easily to lay.

1  Steel tape armored,
    excellent anti-crush
    properties.
2  Good anti-bullet properties.
