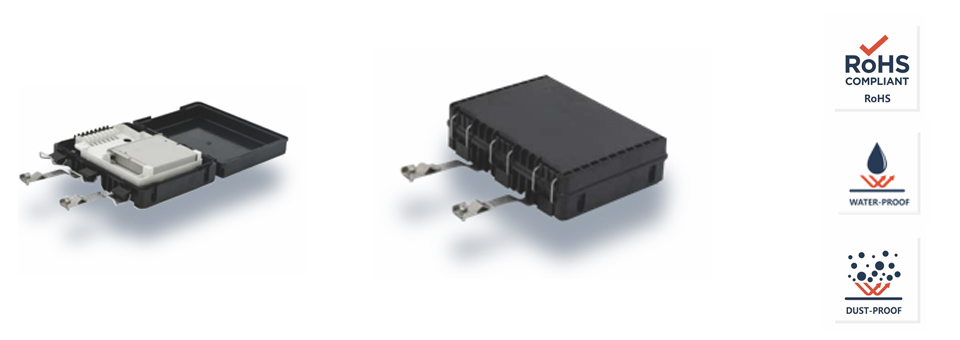

| Model No. | FOC-HM02-8 |
| Dimension( H x W x D) | 170x250x60mm |
| Subscribers | 1pcs 1×8 PLC Splitter |
| Max Capacity Of Splicing | 24 |
| Max Number of Trays | 1 |
| Input/ Output Port | 2(Φ11.0mm)/ 2(Φ11.0mm) |
| Bending Radius | ≥30mm |
| Sealing | Mechanical |
 1 Easily open |
 1 Modular splitter design. 2 Flat cable：2.0x3.0mm 3 Round cable：3.0mm,3.5mm and 5.0mm. |
 1 No need to cut off the main cable，directly take out fiber from the main cable. |
 1 The cable can be directly came in and trough closure，not like traditional closure. 2 Perfect fiber route design to ensure bend radius of fibers. |
