Product

CABLE—FTTH

GJFJH-Ⅱ Optical Fiber Cable
  • Specification
  • Features

Model NO.





GJFJH -4 B6

Fiber type

G657

Sheath color

White

Sheath material

LSZH

Cable dimension (mm)

4.0, Tolerance±0.1

Operation temperature (℃)

-20~+60

Min. bending radius (mm)

20 (Static)

10(Dynamic)

Attenuation (dB/km)

 ≦ 0.4 at 1310nm

 ≦ 0.3 at 1550nm

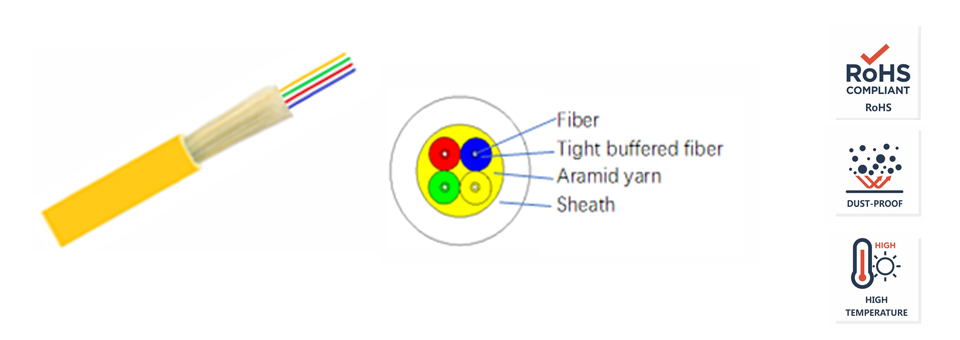

1  Round cable
2  4 cores


1  Tight buffer layer
2  Protect fiber from damage,
    and easy splicing.

1  Customized outer sheath
2  Package and shipment
