Product

CABLE—FTTH

GJFJPH Optical Fiber Cable
  • Specification
  • Features

Model NO.





GJFJPH

Fiber type

G657

Sheath color

Yellow, Orange or Aqua

Sheath material

LSZH/PVC

Cable dimension (mm)

4.2-8.5, Tolerance±0.1

Cable weight (Kg/km)

12.4-65

Min. bending radius (mm)

20 (Static)

10(Dynamic)

Attenuation (dB/km)

 ≦ 0.4 at 1310nm

 ≦ 0.3 at 1550nm

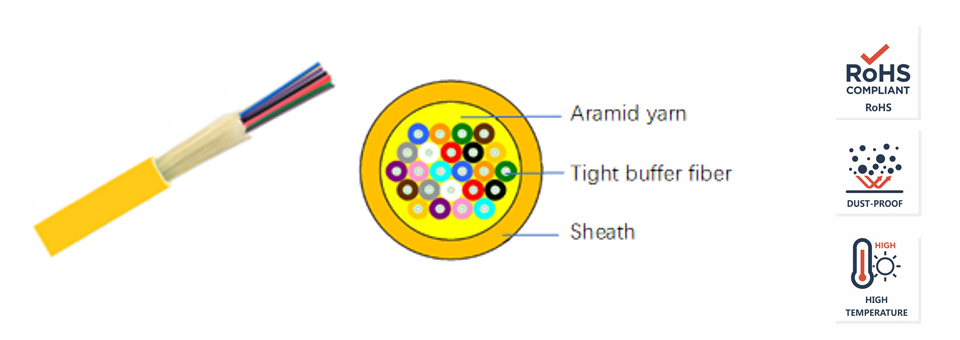

1   Tight buffer fiber with single
     strength member.
2   Each sub cable contains
    aramid yarn, good bend
    performance.


1  Standard core can be
    directly apply to connectors,
    to use for device connecting.

1  Tight buffer layer, protect
    fiber from damage, and
    easy splicing.
2  Good bending performance
