Model NO. |
GJXH-Ⅰ |
|
Fiber type |
9/125(G657A1/G657A2) |
|
Sheath color |
Black/White/Grey |
|
Sheath material |
LSZH |
|
Cable dimension (mm) |
2.0*1.6, Tolerance±0.1 |
|
Operation temperature (℃) |
-20~+60 |
|
Min. bending radius (mm) |
15 (Static) 30(Dynamic) |
|
Attenuation (dB/km) |
≦ 0.4 at 1310nm ≦ 0.3 at 1550nm |

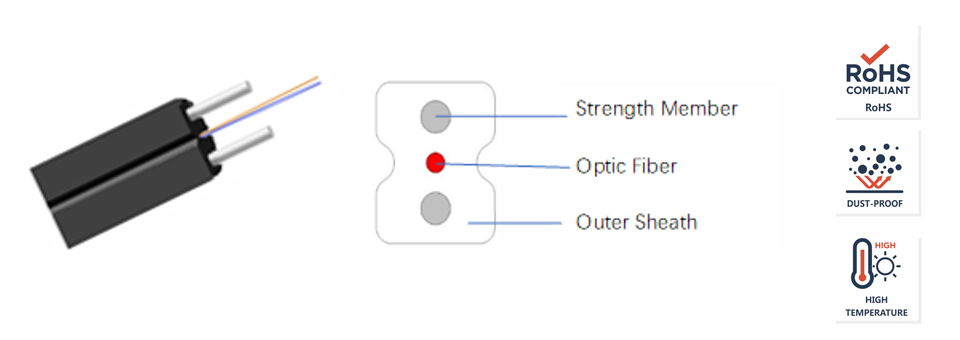

 1 Groove design, easily strip and splice. 2 simplified installation and maintenance. 3 higher tensile strength |
 1 Suitable for all kinds of connectors 2 Can make patchcord and pigtail. |
 1 Used in indoor cabling, especially used for FTTH. 2 Used as access building cable. |
