MS———FTTH

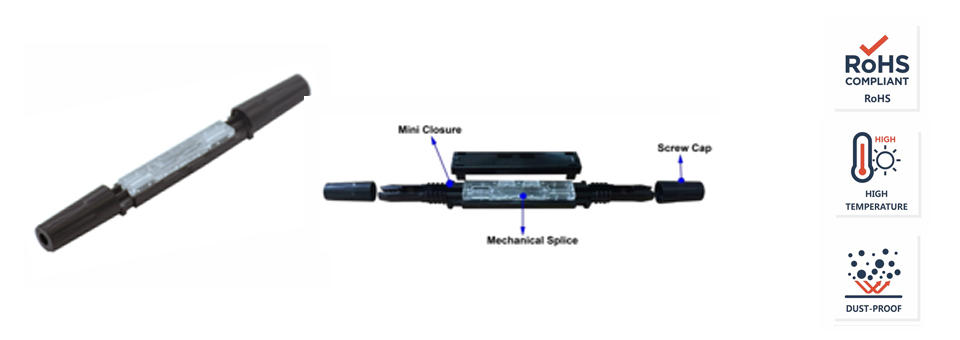

MS-C01 Mechanical Splicer
  • Specification
  • Features

Model No.

MS-C01

Applicable for

2.0 x 3.0 mm drop cable

Tight buffer diameter

250μm & 900μm

Insertion loss

≤ 0.2dB

Return Loss

≥ 50dB

Tensile

≧50N

Success rate

>97%

Fiber

G657A or customized

Reusability times

>5times

Dimension(mm)

77×10×7

Mechanical durability (500 times)

△IL ≤ 0.2dB

Using temperature

-25 - +70℃



One tool,two functions


Copper tube,Strengthen
the tension

Silicone and tin foil double
protection, IP68 waterproof level
