CABLE-FTTH

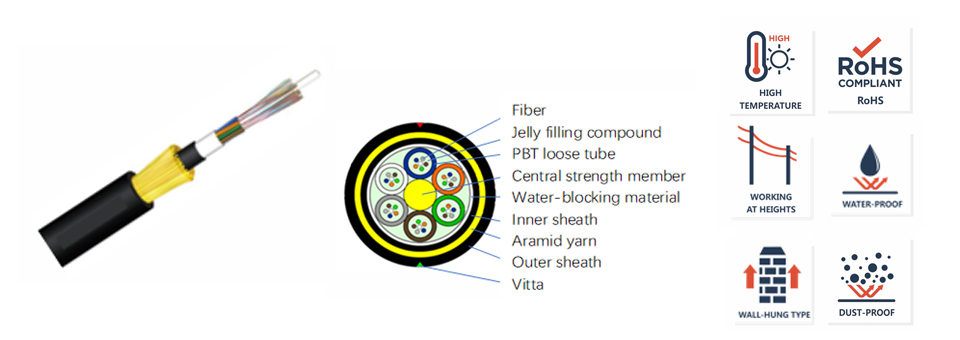

ADSS Optical Fiber Cable

Specification
Features

Model No.	ADSS
Fiber type	G652/G657
Sheath color	Black or White
Sheath material	PE/AT
Cable dimension (mm)	11-20.2, Tolerance±0.1
Cable weight (Kg/km)	96-290
Min. bending radius (mm)	20 (Static) 15(Dynamic
Attenuation (dB/km)	≦ 0.4 at 1310nm ≦ 0.3 at 1550nm

1 Non metallic structure
    provides good
    insulation, excellent
    lightning resistant.

1 Use high intensity aramid
   yarn as anti-pulling
   component,strong, light and
   small cablediameter,suitable
   for different climatic situation
   and installation span.

1 Long distance telecom, LAN in
high voltage area or access to
telecom network.
