FOC—————FTTH

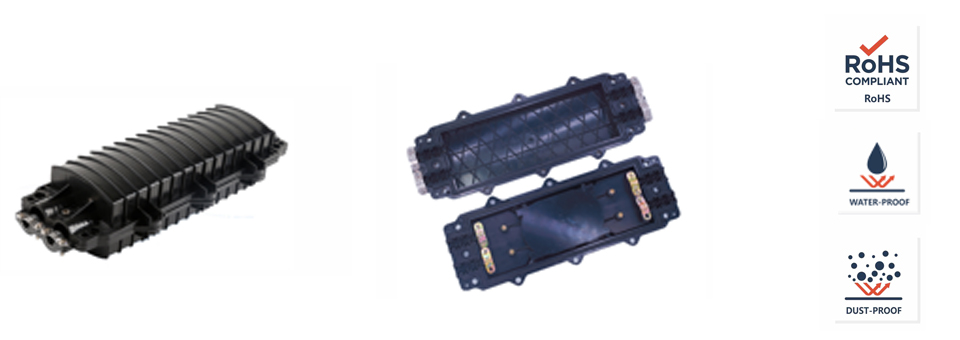

FOC-HM04-96 HORIZONTAL CLOSURE
Model No. |
FOC-HM04-96 |
Dimension( H x W x D) |
141x445x110mm |
Max capacity of tray |
24 |
Max Capacity of Splicing |
96 |
Max Number of Trays |
4 |
Input/ Output Port |
2(Φ10.0x16.0mm)/ 2(Φ10.0x16.0mm) |
Bending Radius |
≥30mm |
Sealing |
Mechanical |
![](/uploads/200927/1-20092G11U5115.png)
1 The shell is made of high-strength engineering plastics,degree of protection:IP65. |
![](/uploads/200927/1-20092G11Zc93.png)
1 No need to cut off the main cable,directly take out fiber from the main cable. |
![](/uploads/200927/1-20092G11920D3.png)
1 Easily operate and max splicing capacity. |
