Model NO. |
GYFJH-Ⅱ |
|
Fiber type |
G657A2 |
|
Sheath color |
White/Grey |
|
Sheath material |
LSZH |
|
Cable dimension (mm) |
6.3, Tolerance±0.1 |
|
Operation temperature (℃) |
-20~+60 |
|
Min. bending radius (mm) |
20 (Static) 10(Dynamic) |
|
Attenuation (dB/km) |
≦ 0.4 at 1310nm ≦ 0.3 at 1550nm |

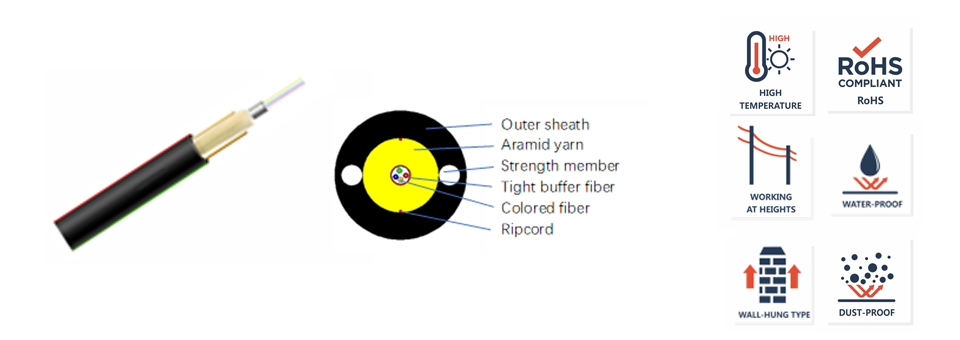

 1 Two parallel Fiber Reinforced Plastics (FRP). 2 PE sheath protects cable from ultraviolet radiation. |
 1 Small diameter, light weight and easy installation. |
 1 Long delivery length. 2 Packed by wooden drum. |
