Product

FIC—————FTTH

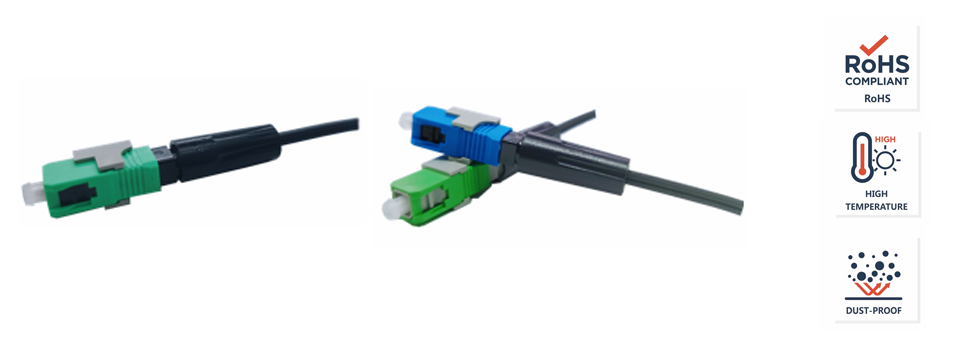

FIC-07 Field Installation Connector
  • Specification
  • Features

Model No.

FIC-07

Insertion loss

≤0.30dB   Max 0.5dB

Return loss

APC≥55dB UPC≥50dB

Tensile

△IL<0.3dB @ 40N

Durability

>500 times

Re-assembly

>5 times

Cable scope

2.0mmX3.0mm Drop Cable

Humidity

≤ 95%

Operating temperature

-25-85℃

Atmospheric Pressure

70-106Kpa



Fixed length precision

The buckle firmly locks the bare fiber

High quality ceramic ferrule

Threaded tail sleeve design, easy to install
