Model NO. |
GYXTC8S |
|
Fiber type |
G652 |
|
Sheath color |
Black |
|
Sheath material |
PE |
|
Cable dimension (mm) |
7.0*14.0/8.0*15.1, Tolerance±0.1 |
|
Cable weight (Kg/km) |
118/129 |
|
Min. bending radius (mm) |
30 (Static) 15(Dynamic) |
|
Attenuation (dB/km) |
≦ 0.4 at 1310nm ≦ 0.3 at 1550nm |

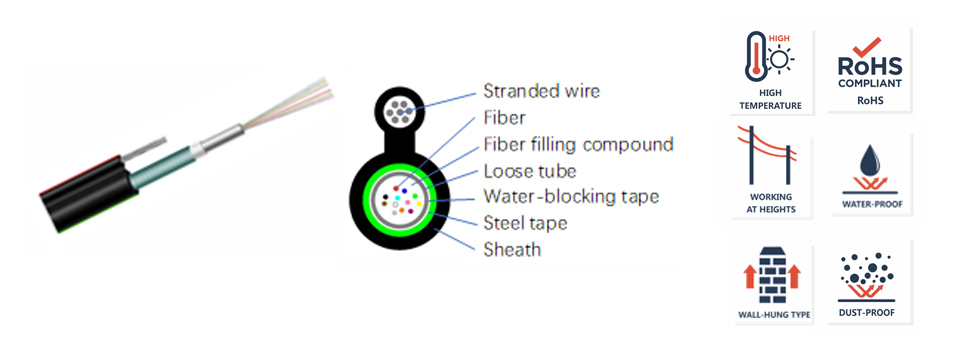

 1 Waterproof layer between steel tape and cable core. 2 Figure 8 cross section |
 1 Self-support Hanging. 2 Long distance communication |
 1 Steel tape armored, excellent anti-crush properties. 2 Good anti-bullet properties. |
