Product

CABLE—FTTH

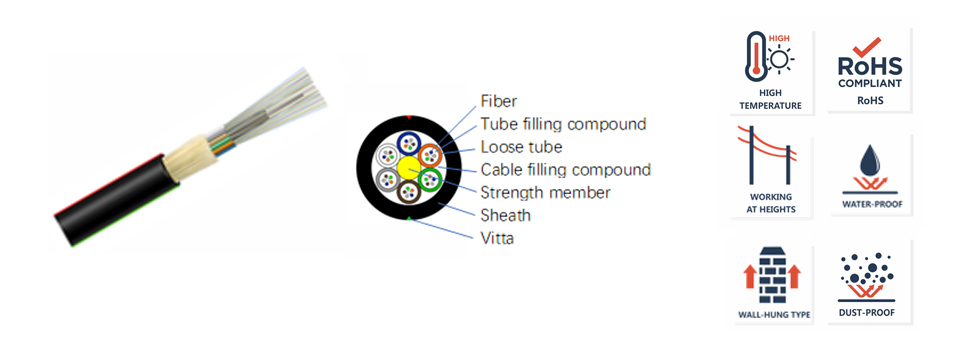

GYFTY Optical Fiber Cable
  • Specification
  • Features

Model NO.

GYFTY

Fiber type

9/125, 50/125, 62.5/125

Sheath color

Black

Sheath material

PE

Cable dimension (mm)

9.0-13.0, Tolerance±0.1

Cable weight (Kg/km)

88-150

Min. bending radius (mm)

30 (Static)

15(Dynamic)

Attenuation (dB/km)

 ≦ 0.4 at 1310nm

 ≦ 0.3 at 1550nm




1  Single-Jacket, Single-
    Armored;
2  High-fiber density


1  Fully water-blocked

1  Long delivery length.
2  Packed by wooden drum.
