Model NO. |
GYTC8A |
|
Fiber type |
G652 |
|
Sheath color |
Black |
|
Sheath material |
PE |
|
Cable dimension (mm) |
9.5*18.3-15.0*24.3, Tolerance±0.1 |
|
Cable weight (Kg/km) |
218-350 |
|
Min. bending radius (mm) |
30 (Static) 15(Dynamic) |
|
Attenuation (dB/km) |
≦ 0.4 at 1310nm ≦ 0.3 at 1550nm |

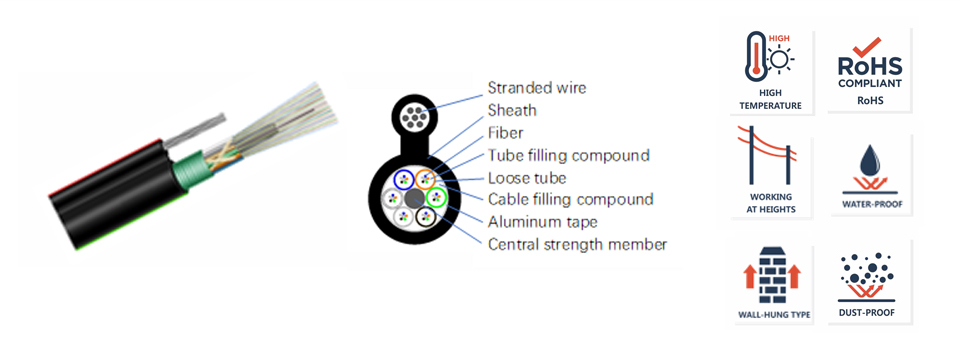

 1 Single steel wire as central strength member 2 Loose tube filling compound |
 1 High tensile strength of stranded wires meet the requirement of self- supporting and reduce the installation cost. |
 1 Steel tape armored, excellent anti-crush properties. 2 Good anti-bullet properties. |
